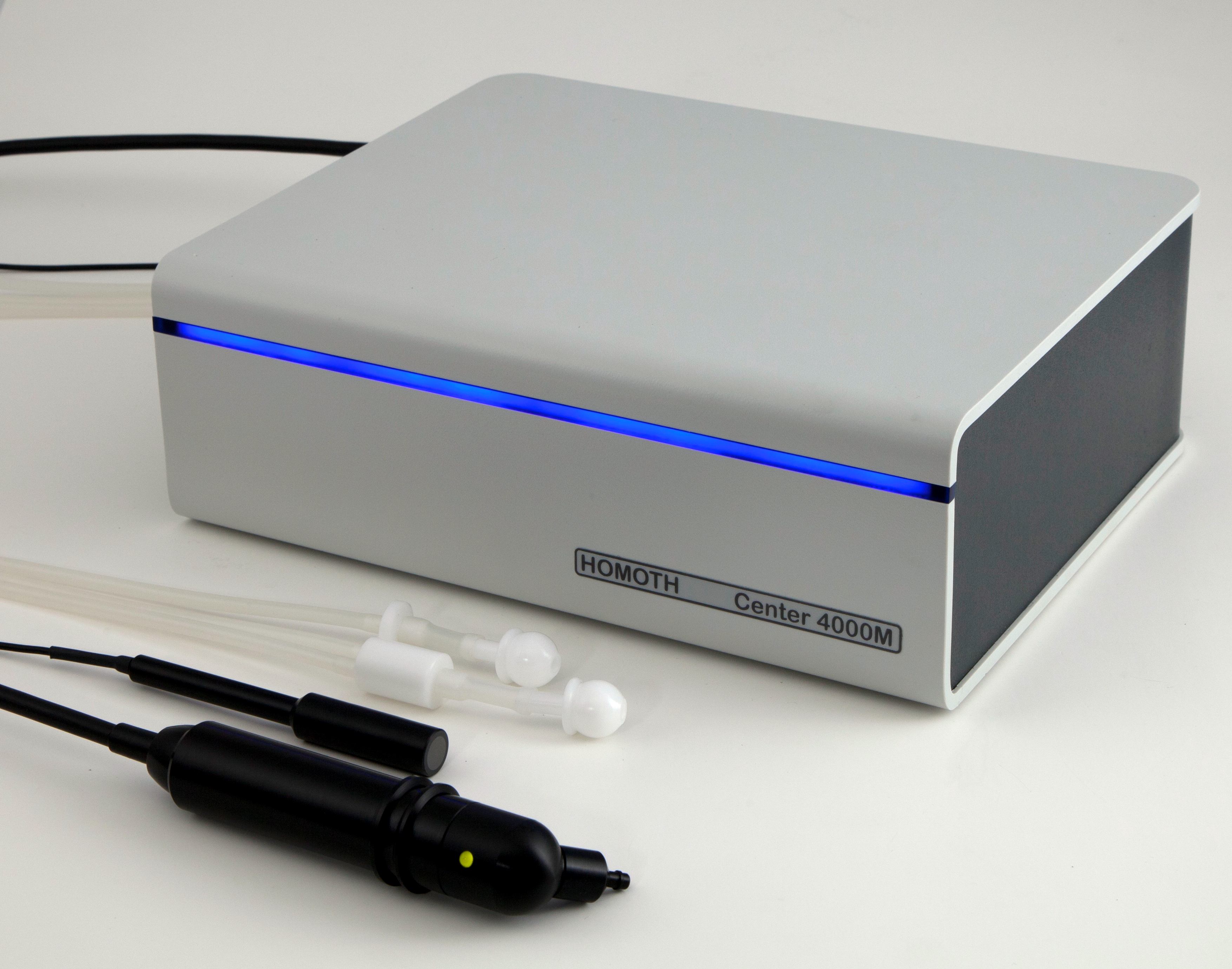

Center 4000 – Tympanometer + Rhinomanometer + Sinuses Ultrasound. Center 4000 is a modern combination of three basic diagnostic tools for ENT. All data is stored in a single patients database. Center 4000 allows you to save space and money.
Download tympanometers catalog.
Tympanometr – 4000M Tymp allows a full, automatic impedance test within a few seconds. The measurement results are presented on a computer monitor. The device is intended for the use in a private practice and in clinical applications. Because the measurements will take just two seconds, the device is well suited to for children examinations and susceptible patients. The test is objective and does not require the active participation of the patient. Simple and intuitive operation. The examination begins with the placement of the probe in the ear canal and runs automatically. Three-color LED diodes in the handle of the probe indicates the correctness of the measuring process. It is possible to perform ipsilateral and contralateral tests. This device has an exceptionally quiet digital recording equipment, which allows you to display the examination’s results in real time. Communication with the PC occurs via a USB interface.
Rynomanometr – RHINO 4000M allows the study of air flow in the upper parts of the nasal passages. It allows to do the measurement in two ways: through nasal olives or using an optional mask on the nose and mouth. The device is controlled from a PC. Thanks to the nasal olives people with facial hair, long hair and children fearing masks can be tested without any problem. For clinical applications, it is possible to attach the optional mask over the mouth and nose. During the measurement, the intensity of respiration is controlled by two leads. Use of a microprocessor controlling the measurement makes it very easy to use. The average of the five flow curves is calculated and graphed as a curve of flow. Scales of pressure: 75 Pa, 150 Pa and 300 Pa, together with the percentage of the left and right side. In clinical applications, the drag coefficient is calculated. The measurement results are stored on the PC. Applications: determining the impact of allergic tests, diagnosis of nasal fractures, control of the functionality of the nose after an operation, control of the functionality of the nose after administration of medications.
Ultrasound – US 4000M is a device for testing of the sinuses by using ultrasounds. Automatic selection of measurement’s parameters (scale and gain) when switching from the maxillary sinus to the frontal sinus. Simple and quick study, harmless to children and pregnant women. Modern technology, high operating comfort. The measurement data and curves can be archived and can also be printed using a standard printer working in Windows. The probe also serves as a transmitter and receiver of ultrasound echoes. US 4000 system is very useful in everyday ENT diagnosis. The measurement is very fast and reliable. Thanks to the use of ultrasounds the patient is not exposed to harmful X-rays.
Download Center 4000 catalog.
More information about our products available here.
If you’d like more information or have any questions please feel free contact us using this e-mail address: email@example.com or by calling +48-74-84-38-109 (Monday – Friday, from 8:00 till 16:00 GMT+1).
For more information about the products click the equipment below:
