Sinus Ultrasound US 4000

Sinus Ultrasound US 4000 blue line

Sinus Ultrasound US 4000 blue line

Center 4000 Tympanometer + Rhinomanometer + Sinuses Ultrasound

Center 4000 Tympanometer + Rhinomanometer + Sinuses Ultrasound

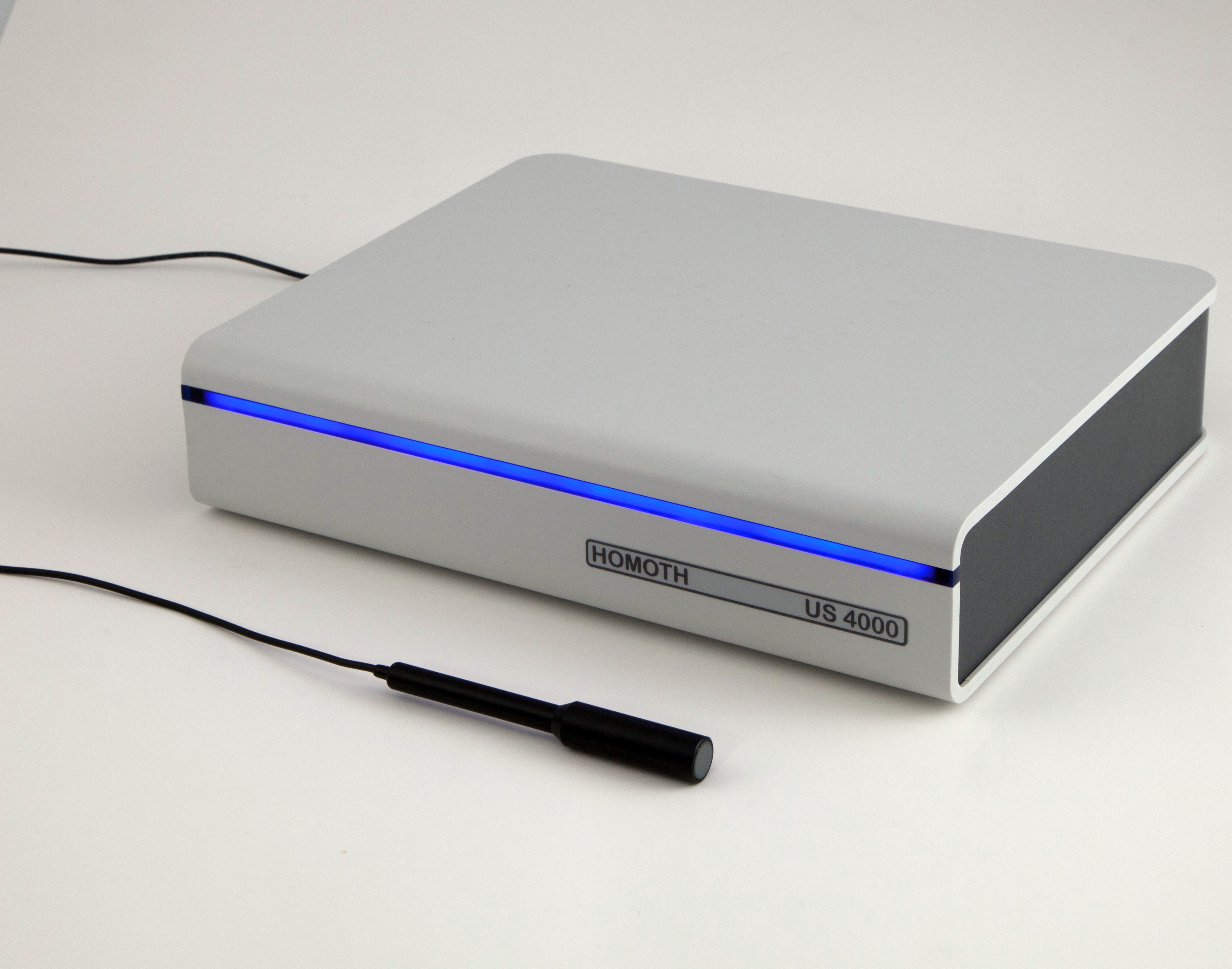

Sinus Ultrasound US 4000 is an easy-to-use device for diagnosis of maxillary and frontal sinus. The test is painless for the patient and allows the assessment of the patient’s anatomy without the need for X-rays. US 4000 is controlled using a PC / Laptop. The results are send to the screen in the form of graphs. A patients database allows you to archive the results. Software available in several languages. A footswitch is provided for even easier use of the device. US 4000 is available in a standard housing or as a Blue Line series – coated with antibacterial material.



The newest addition to our offer is CENTER 4000. It’s a combination of Tympanometer, Rhinomanometer and Sinus Ultrasound in one sleek package. CENTER 4000 saves space and money. CENTER 4000 is available in the Blue Line version.



Specification:

  • System: module controlled from a PC / Laptop
  • Interface: USB 2.0
  • Standards: EN 606001-1 / IEC 1157, 93/42 EEC
  • Poll: focused, diameter 14mm
  • Frequency: 3.5 MHz
  • Pulse frequency: 120Hz
  • Probe power: 50mW/cm2
  • Gain: 80dB
  • Depth strengthening: 20dB
  • Range:
    – Frontal sinus (sinus frontalis) 3.5 cm
    – Maxillary sinus (sinus maxillaris) 7.5 cm
  • Dimensions: 300 × 270 × 75mm

Accessories:

  • ultrasound probe
  • Sonogel gel
  • footswitch
  • probe holder
  • cables (power, USB)
  • software on a CD; multilingual



Download US 4000 catalog.



More information about our products available here.

If you’d like more information or have any questions please feel free contact us using this e-mail address: info@videomed.eu or by calling +48-74-84-38-109 (Monday – Friday, from 8:00 till 16:00 GMT+1).
